Summary

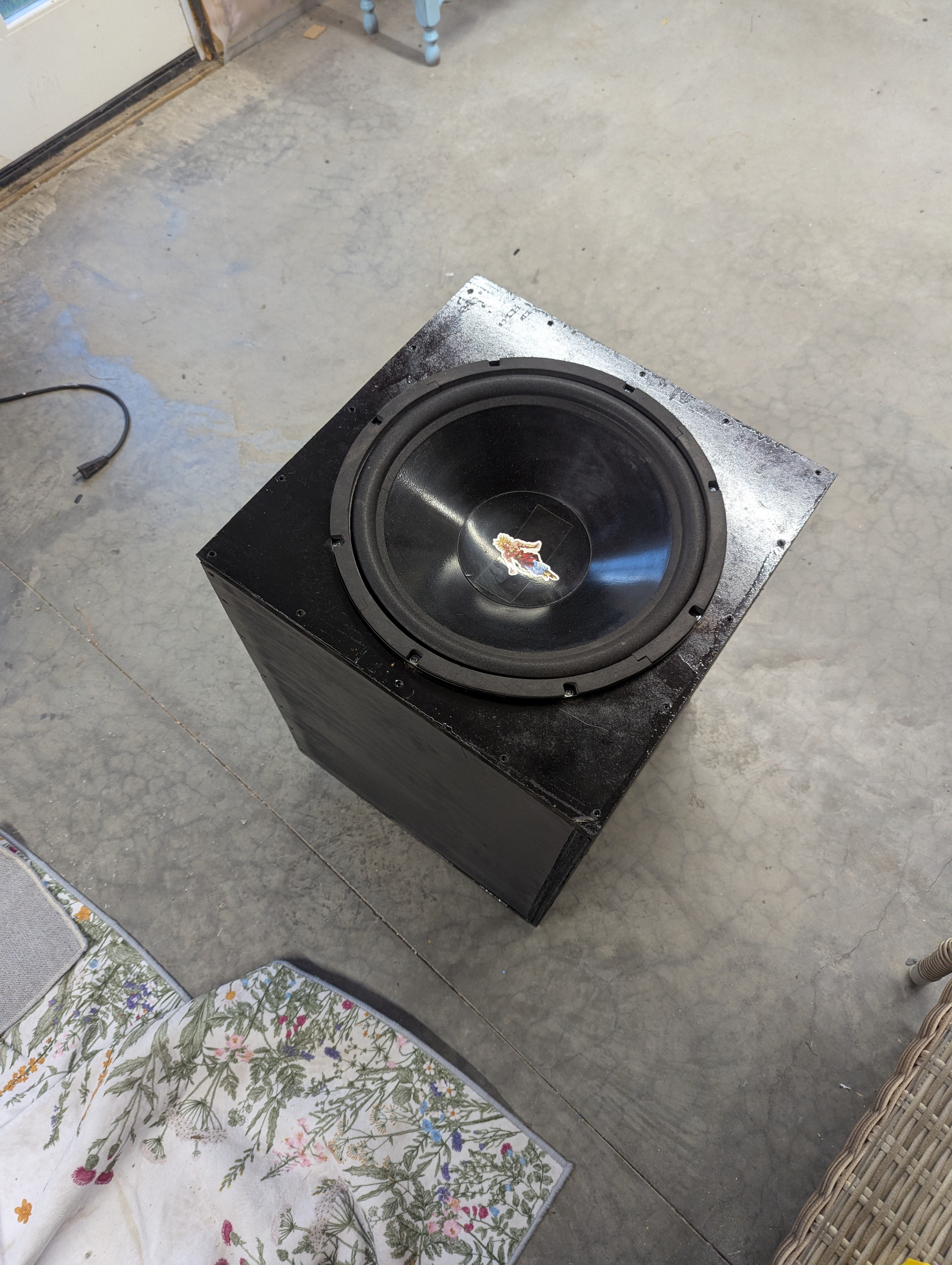

This project covers the complete design, fabrication, and integration of a custom 15-inch ported subwoofer cabinet built to deliver deep, clean low-frequency response. Featuring a heavy-duty 15-inch driver, a robustly braced enclosure, dual 4”×4” square PVC ports terminated with custom 3D-printed flared horns, and custom 3D-printed 4mm bullet connector mounts wired with thick 12AWG cable, the system is powered via a multi-tier amplification setup utilizing a Denon 1912 AV receiver and a vintage KLH KL-2400 stereo receiver.

Purpose and Design Goals

The objective of this build was to engineer a high-output subwoofer capable of subterranean bass extension for music listening and home theater applications while maintaining a tight transient response, high efficiency, and minimal port turbulence. Key design parameters included:

• Enclosure Type: Ported (bass-reflex) tuned specifically for low-frequency extension.
• Port Architecture: Dual 4”×4” square PVC tubes, 18 inches in length, featuring custom 3D-printed flared horn openings to eliminate port chuffing and compression.
• Internal Connections: Custom 3D-printed 4mm bullet connector mounts securely housing high-current connections paired with 12AWG oxygen-free copper speaker wire.
• Amplification & Drive: Driven via an integrated setup pairing the processing of a Denon 1912 AVR with the robust output of a vintage KLH KL-2400 stereo receiver.
• Structural Integrity: Thick panel walls reinforced with internal window bracing to eliminate cabinet flex and panel resonance at high sound pressure levels (SPL).

Specifications

Parameter	Value
Driver Size	15 inches
Enclosure Type	Ported / Bass-Reflex
Port Configuration	Dual 4” × 4” square PVC tubes
Port Length	18 inches
Port Terminals	Custom 3D-printed flared horn mounts
Internal Connectors	Custom 3D-printed 4mm bullet connector mounts
Wiring	12AWG oxygen-free copper
Amplification	Denon 1912 AVR / KLH KL-2400

Materials

• 15-inch subwoofer driver
• High-grade cabinet wood panels (MDF/Plywood)
• Wood glue, heavy-duty screws, and clamps
• 4” × 4” square PVC tubing (cut to 18” length)
• Custom 3D-printed horn port flares (PETG)
• Custom 3D-printed 4mm bullet connector mounts (PETG)
• 4mm gold bullet connectors (male/female pairs)
• 12AWG oxygen-free copper speaker wire
• Polyfill / acoustic damping material
• Denon 1912 AV Receiver
• KLH KL-2400 Stereo Receiver

Design & Engineering

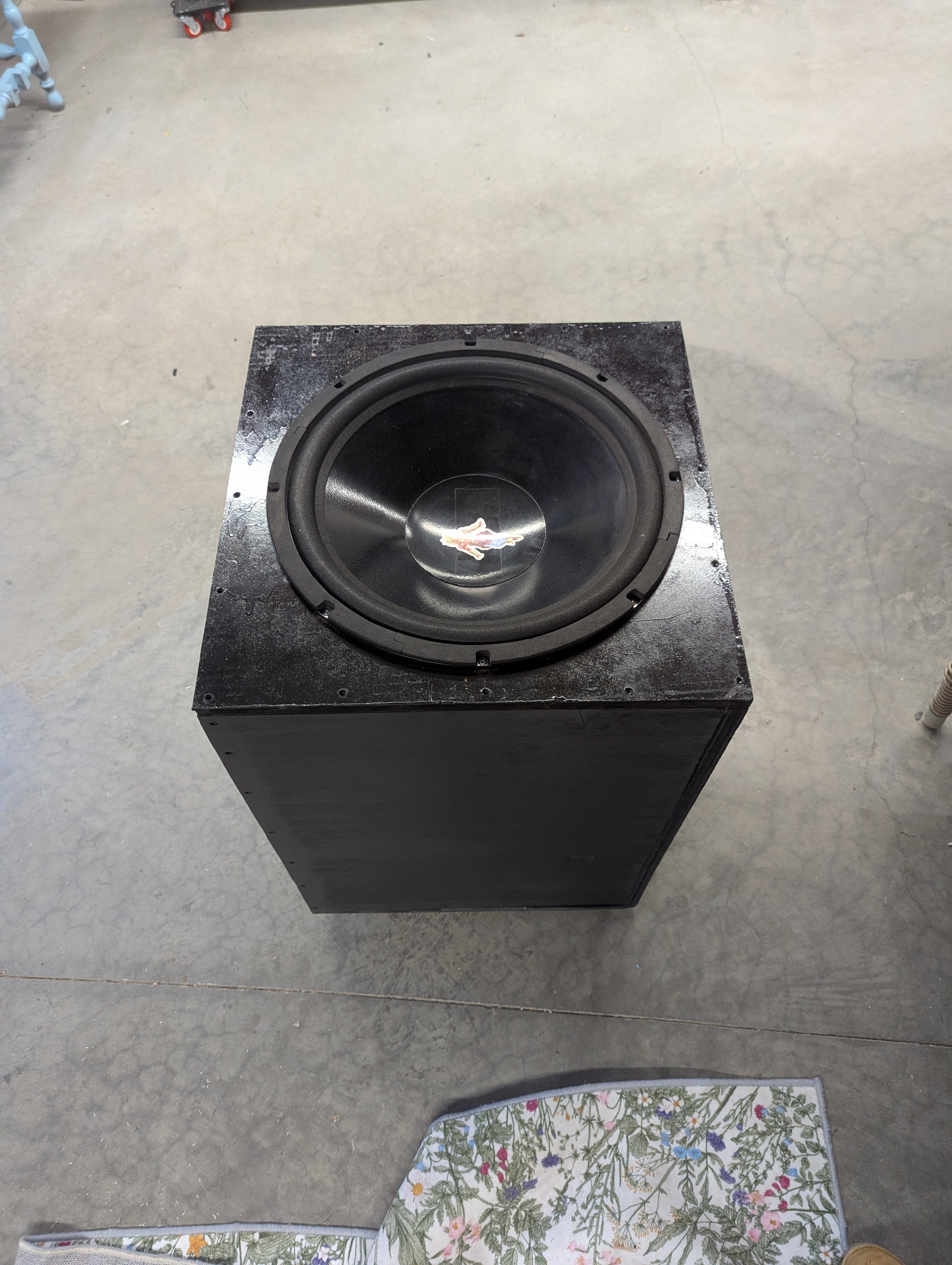

Enclosure and Internal Bracing

A 15-inch driver displaces substantial air volume and generates immense internal pressures. To prevent cabinet coloration and panel resonance, the enclosure was designed with thick boundary walls coupled with internal cross-bracing. This effectively shortens large panel spans and ties opposing walls together.

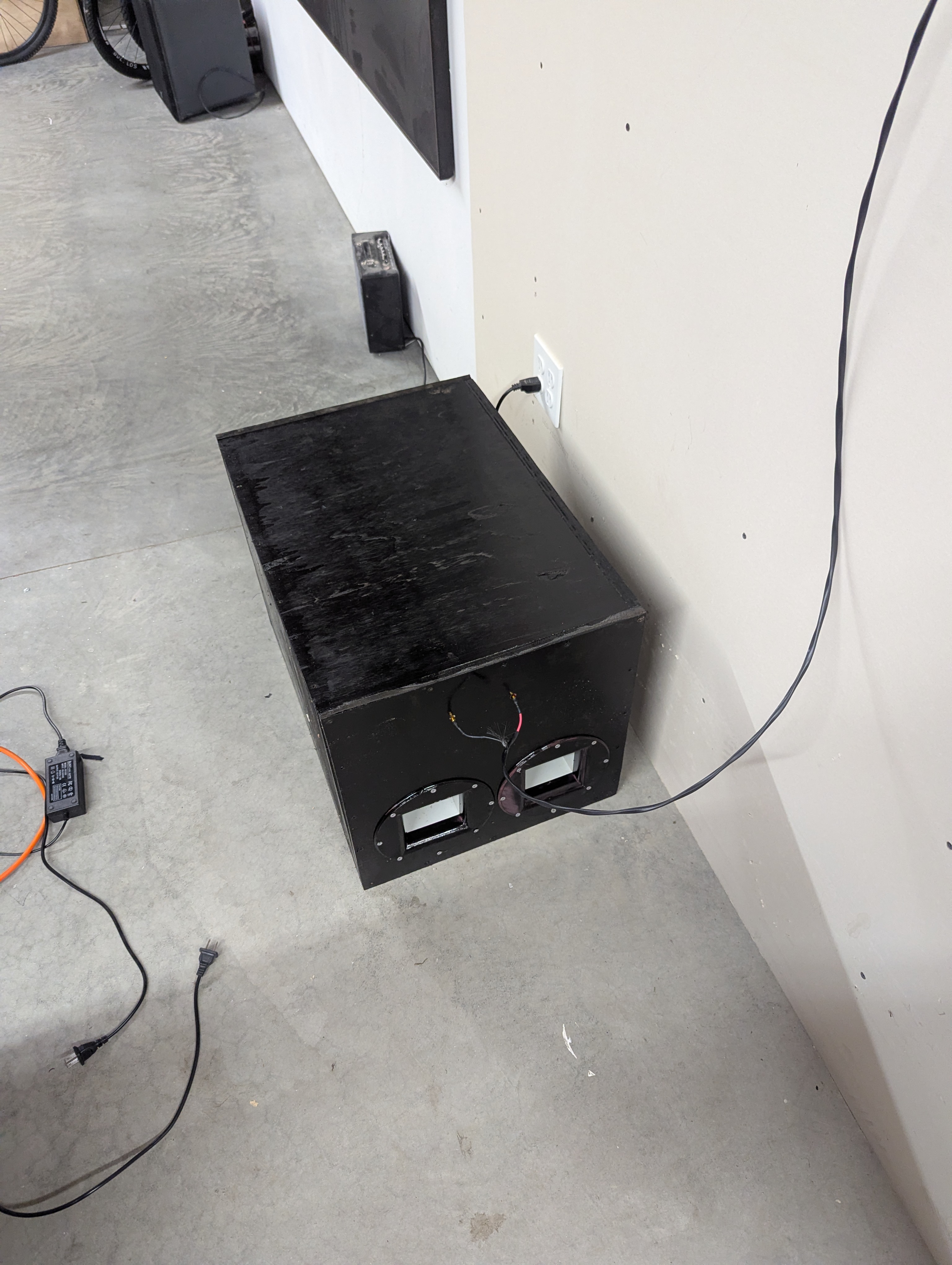

Port Design and 3D-Printed Flares

Port compression and chuffing are common limiting factors in high-excursion ported subwoofers. To mitigate air velocity noise, dual 4”×4” square PVC tubes cut to 18 inches were integrated with custom 3D-printed flared horn mouths. These flares smooth the airflow transition at the boundary layers, drastically reducing turbulence.

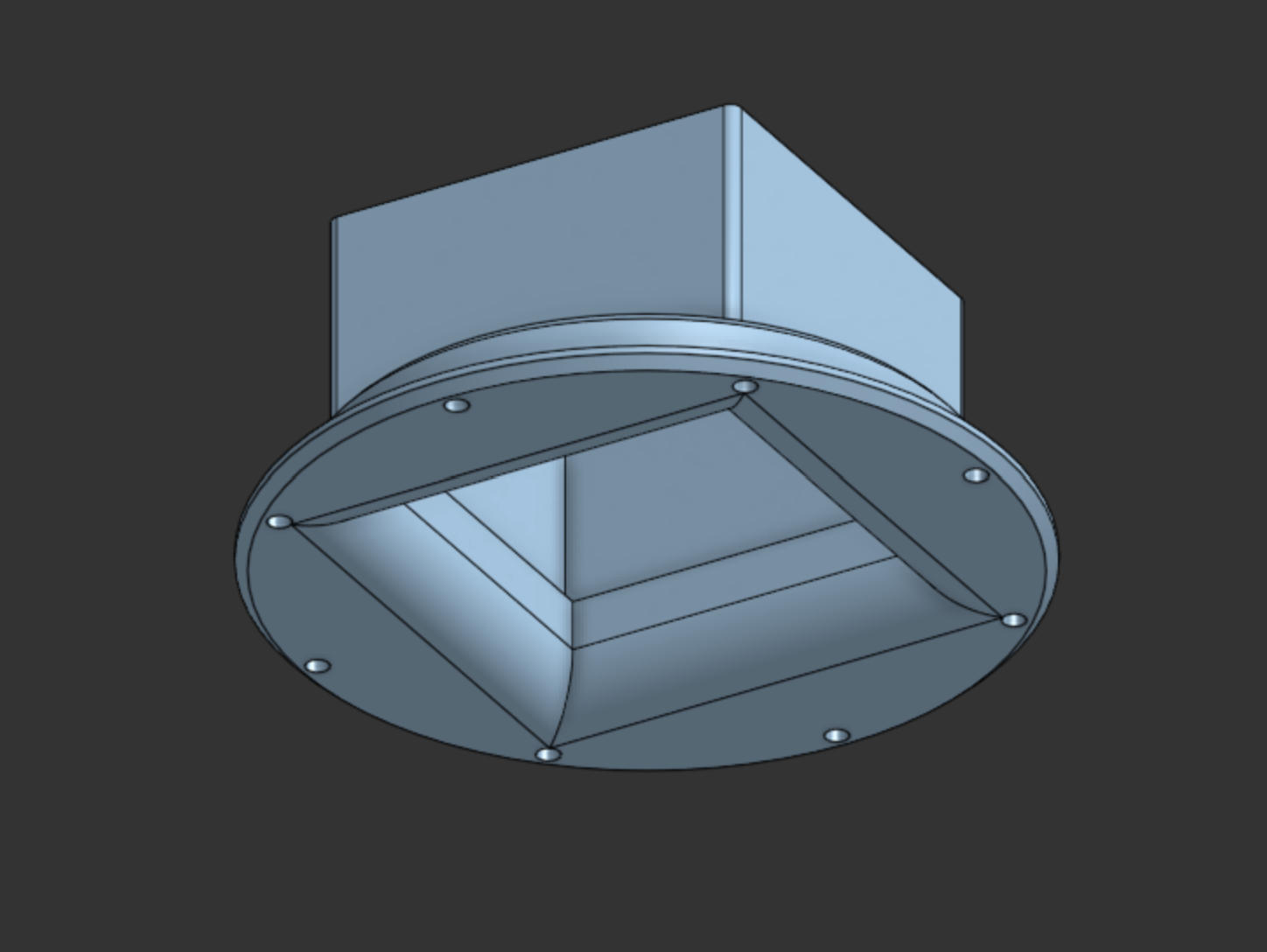

Figure 3: CAD rendering of the custom flared horn port mount.

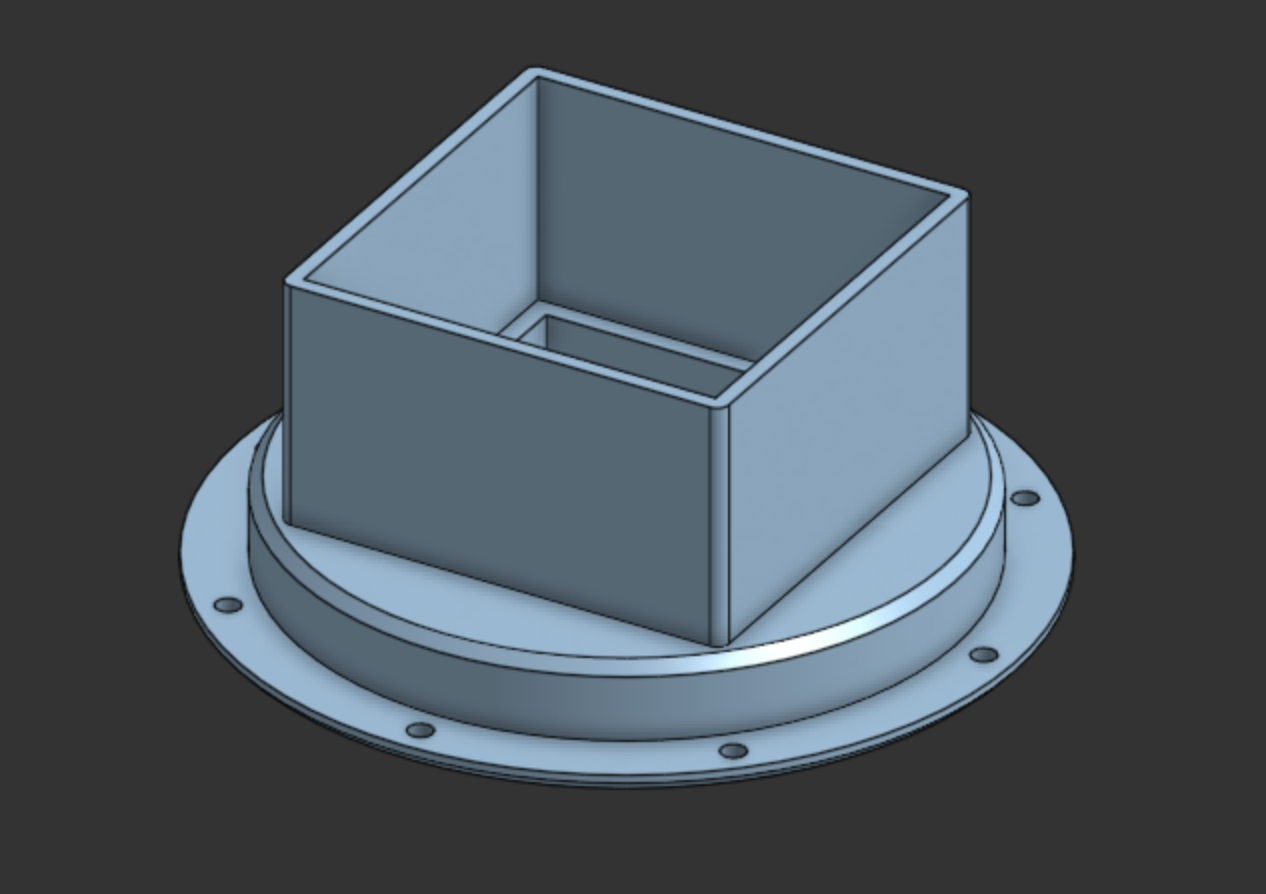

Figure 4: Alternate CAD perspective of the custom port flare geometry.

Custom 3D-Printed 4mm Bullet Connector Mounts & 12AWG Wiring

To ensure robust, vibration-resistant, and easily serviceable internal connections inside the high-pressure cabinet, custom 3D-printed mounts were designed specifically to securely house 4mm gold bullet connectors. These mounts anchor firmly to the internal framing and interface directly with heavy-duty 12AWG oxygen-free copper speaker wire leading to the driver terminals, eliminating loose crimps or solder fatigue under extreme acoustic loads.

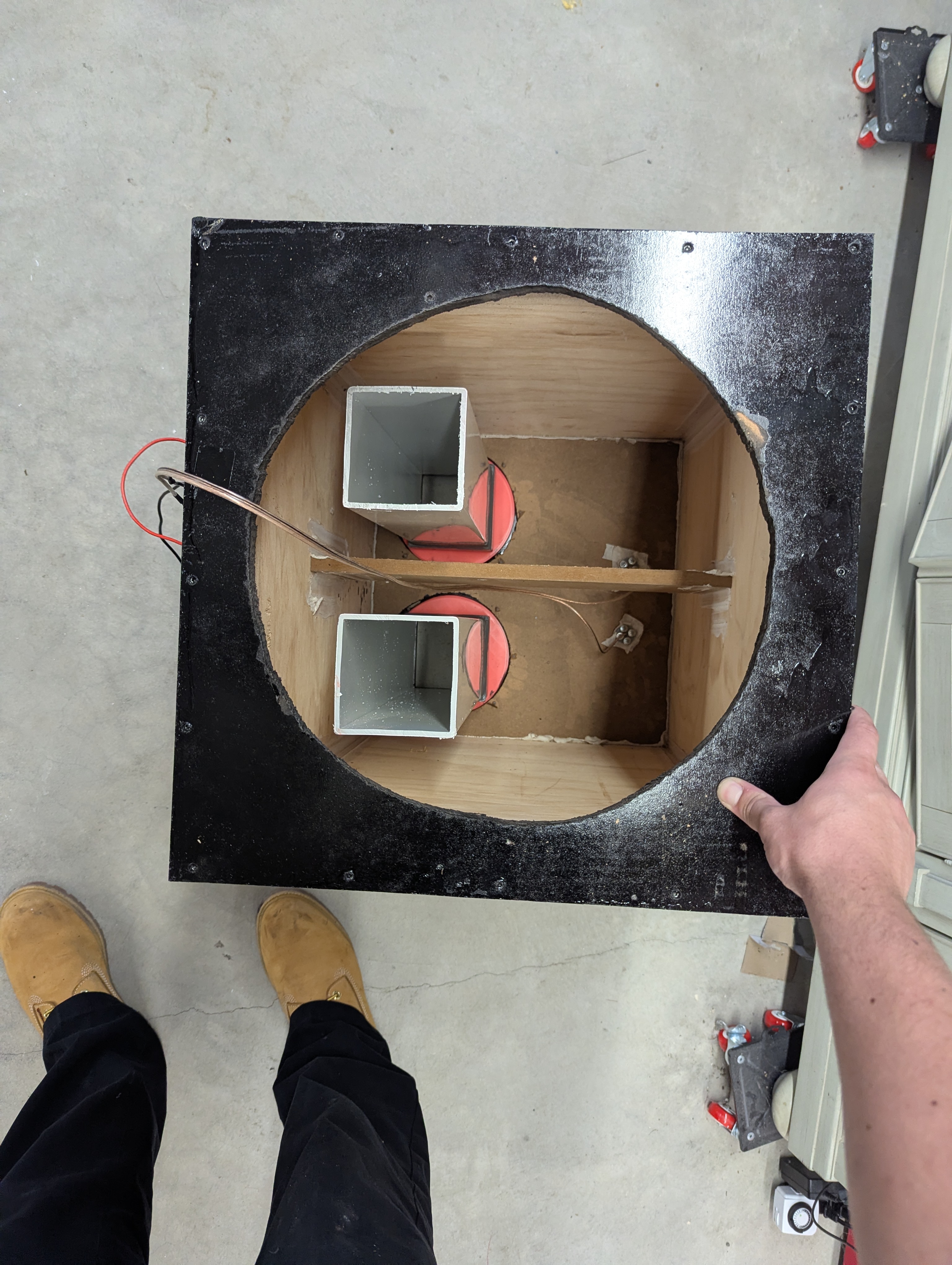

Figure 5: 12AWG wiring and internal component detailing.

Figure 6: Close-up of internal construction and component placement.

Amplification Chain

The subwoofer is driven through a hybrid signal and amplification chain. A Denon 1912 AVR handles system crossover and room correction duties, feeding into the vintage KLH KL-2400 stereo receiver which supplies clean, high-current analog power to the voice coil.

Build Process

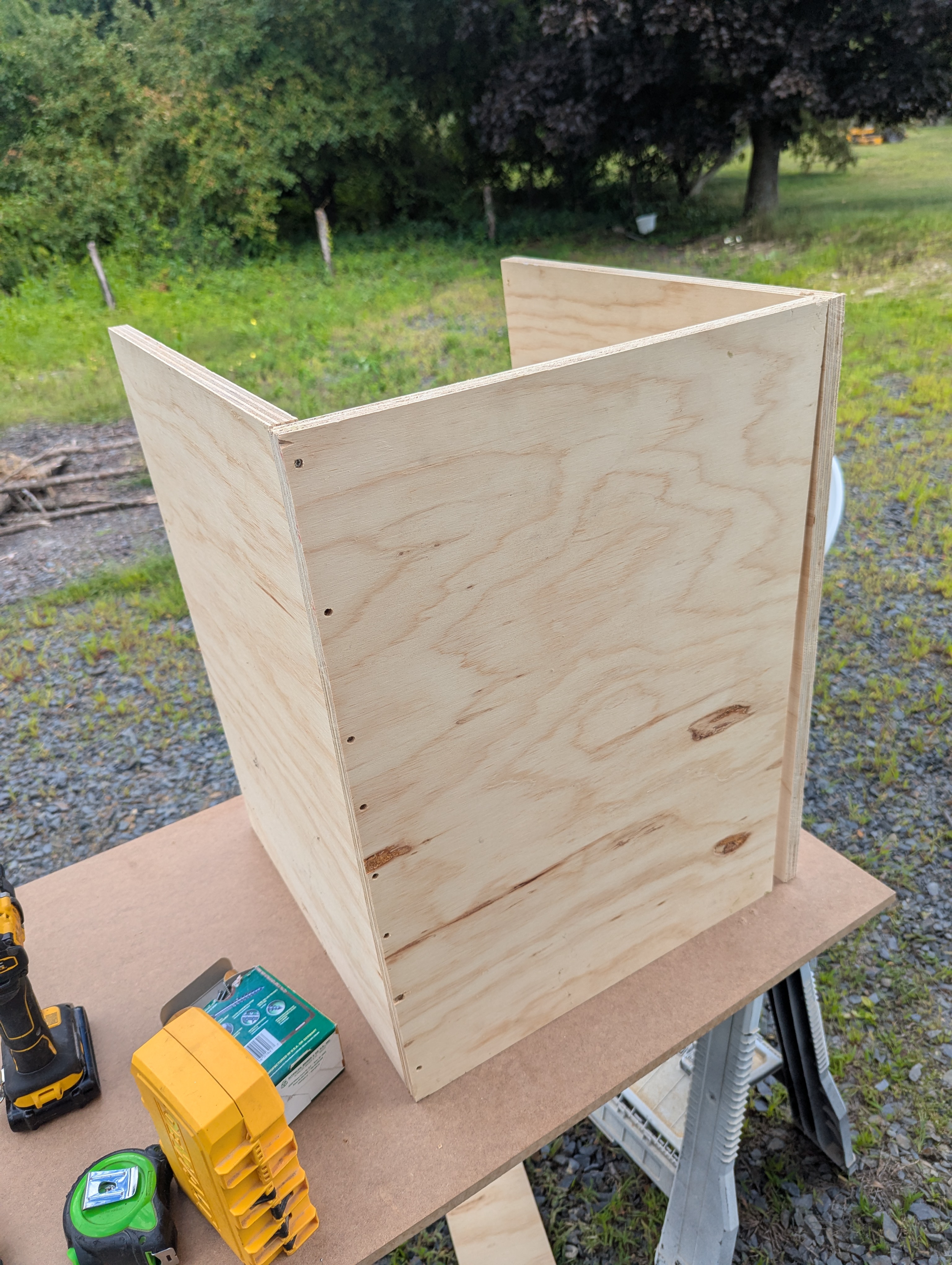

1. Panel Fabrication: Precision cutting of all cabinet walls with miter/rabbet joints for airtight sealing.
2. Bracing & Assembly: Installation of internal window braces followed by gluing and clamping the main shell.
3. Port Construction: Cutting the dual 4”×4” square PVC tubes to 18 inches and sealing the 3D-printed flared horn mounts with epoxy.
4. Wiring & 4mm Bullet Connectors: 3D-printing the custom 4mm bullet connector mounts, securing high-current gold bullet terminals, and wiring everything with heavy-duty 12AWG copper speaker wire to the driver.
5. Damping & Final Integration: Lining interior walls with damping material, closing the cabinet, connecting to the Denon and KLH receiver stack, and performing sweep tests to verify performance.

Conclusion

This custom 15-inch ported subwoofer successfully achieves deep, articulate bass extension with exceptional output authority. The combination of rigid cabinet construction, tuned 18-inch square ports with 3D-printed flares, reliable 3D-printed 4mm bullet connector mounts with 12AWG wiring, and a robust receiver stack results in a powerful, clean low-frequency foundation for any listening environment.
